产品型号:XC08-01

产品特点 Product Features

抗紫外线材料 UV resistant material

外观材料均作抗紫外线处理,保证长期使用依旧如新;

All exterior materials are treated with anti  ultraviolet, Ensure long-term use as new as  ever


个性定制 Personalized customization

优秀技术团队,提供个性定制服务,为您排忧解难

Excellent technical team, providing  customized service, Help you out


超大冷胆 Super large cold tank

超大冷胆,冰水畅饮,多人饮用,清凉消暑

Super large cold tank, drink ice water freely  Provide more cold water for more people

产品参数 Product Parameters

型号 MODELXC08-01A-WR
过滤方式 Water purification methodRO 反(渗透过滤)Reverse osmosisUF(超细微孔过滤 )Ultrafiltration
制水速度 Water purification ability7.8-31.2L/h50L/h
净水箱容量 Water tank capacity12L
冷水箱容量 Cold Water tank capacity5L
热水箱容量 Hot Water tank capacity3.5-10L
冷水温度 Cold Water temp4~10℃
热水温度 Hot Water temp85~93℃
制冷器 Cooler压缩机 Compressor
产品尺寸 Size of mode476x380x1260mm
包装尺寸 Packing size530x460x1315mm
净重 Net weight33kgUF30Kg
毛重 Gross weight36kgUF33kg
装柜数量 Container loading qty40'HQ/220台

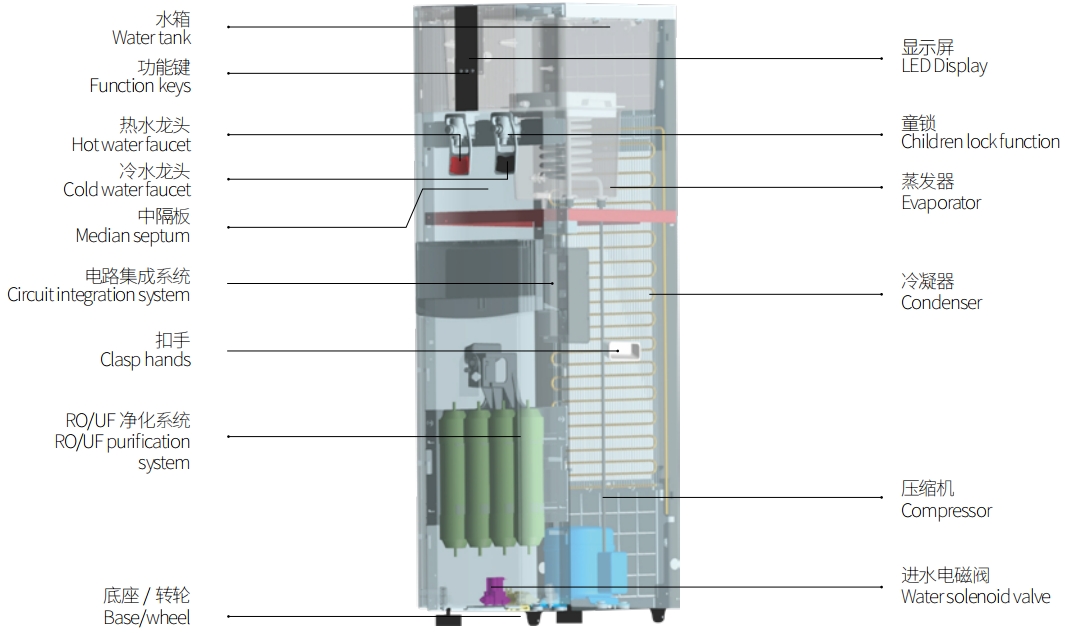

产品结构图 Product Structure
