产品中心

Product Center

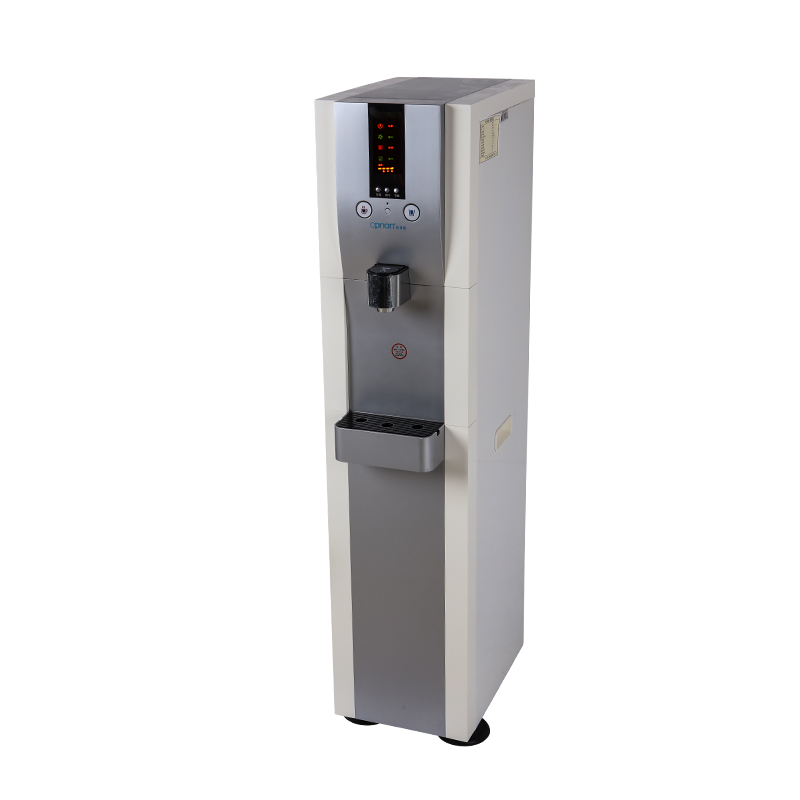

产品型号:XC08-05

产品特点 Product Features

触摸感应 轻松接水 Touch Induction  Easy water-taking

触摸感应设计,只需轻轻触碰即可启动出水电磁阀抛弃传统机械手柄,接水变得更轻松

Touch induction design Only a slight touch can just start”Water Outlet ElectroMagnetic Valve”.It abandons the traditional mechanical faucet and gets the water  more easily


内置不锈钢制冷设计 Built in stainless steel  refrigeration design

双层不锈钢制冷管,内部制令,制冷更快更节能最低水位控制开头,杜绝缺水制冷加热系统四重温度控制保护,杜绝无水加热过热保护,防止意外发生。

Super-large of cool water tank.Double-layer stainless steel refrigeration pipe can freeze  from inside.it brings quicker refrigeration and ti is more energy-saving.Low water-level  control switch avoid water-lacking.Four protections of temperature control for heating  and cooling system to avoid water-less heating and Over-heat. Prevent the prodnct from  the accidents.

产品参数 Product Parameters

型号 MODELXC08-05A-WR
过滤方式 Water purification methodRO 反(渗透过滤)Reverse osmosisUF(超细微孔过滤 )Ultrafiltration
制水速度 Water purification ability7.8L/h50L/h
净水箱容量 Water tank capacity5.1L
冷水箱容量 Cold Water tank capacity2.3L
热水箱容量 Hot Water tank capacity1.4L
冷水温度 Cold Watertemp4~10℃
热水温度 Hot Water temp85~93℃
制冷器 Cooler压缩机 Compressor
产品尺寸 Size of mode450x290x1150mm
包装尺寸 Packing size510x330x1215mm
净重 Net weight26.5kg24kg
毛重 Gross weight28.5kg26kg
装柜数量 Container loading qty40'HQ/320 台

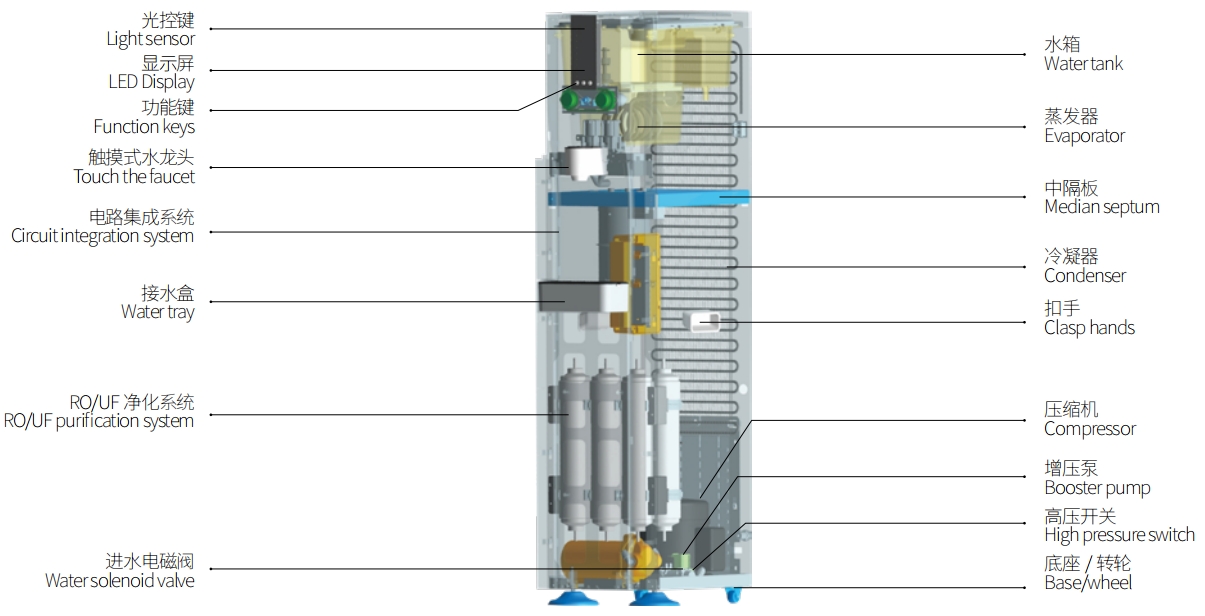

产品结构图 Product Structure
