产品中心

Product Center

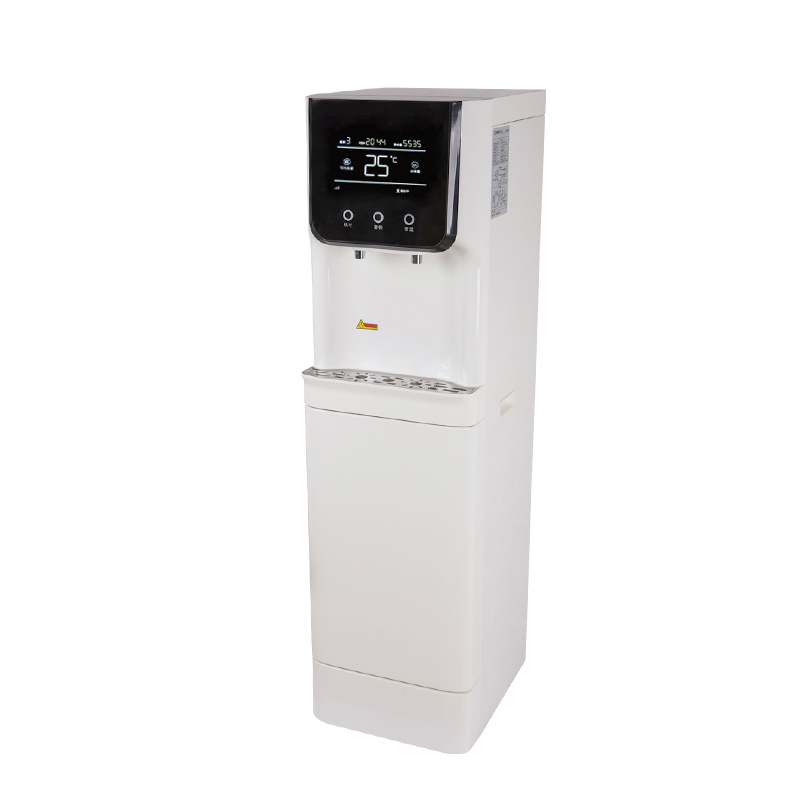

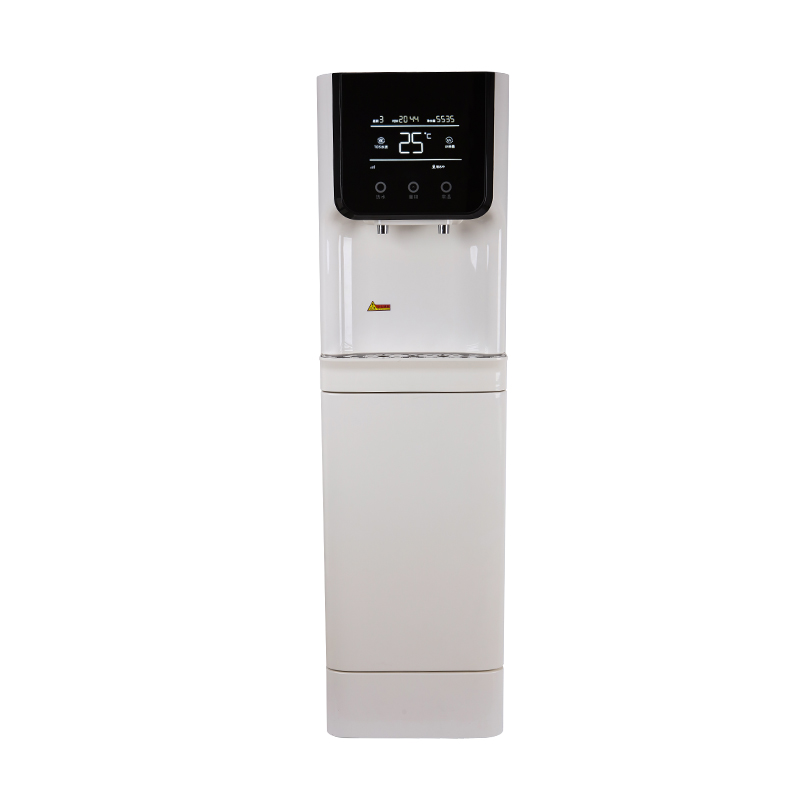

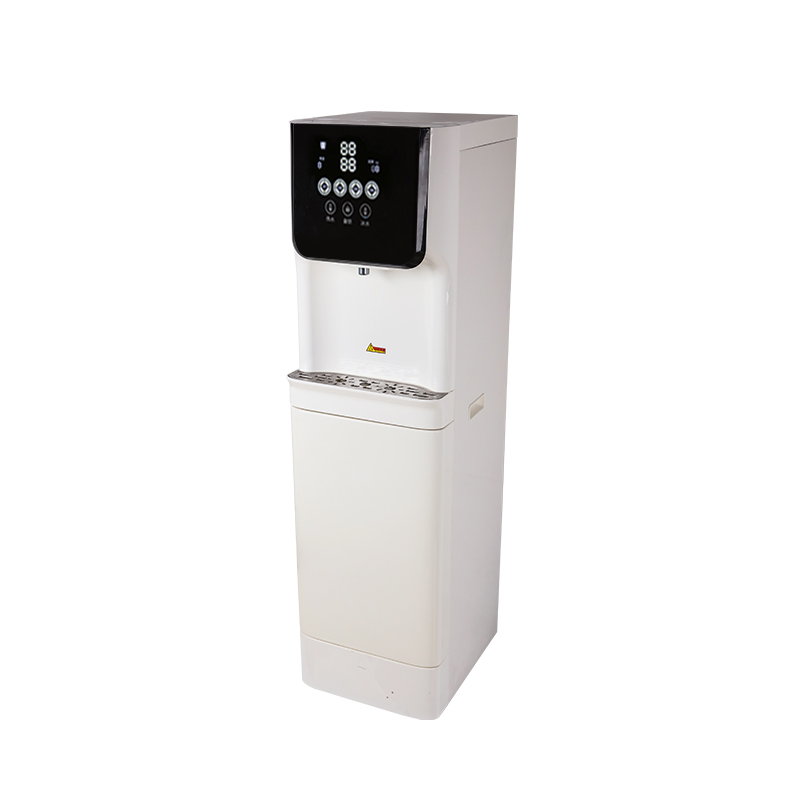

产品型号:XC08-09B

产品特点 Product Features

循环净化 Circulationpurifcation

净水箱 24 小时循环净化,杜绝二次污染

The clean water tank is purified in a 24-hour cycle,Put an end to secondary pollution;


高精度除菌水嘴 High precision sterilizing nozzle

高精度除菌水嘴设计,解决实用过程的细菌超标

High precision water nozzle design for bacteria removal, Solve the problem of exceeding the standard of bacteria in practical process


抗紫外线材料 UV resistant material

外观材料均作抗紫外线处理,保证长期使用依旧如新;

All exterior materials are treated with anti ultraviolet, Ensure long-term use as new as ever,


恒温加热 Constant temperature heating

持续提供≥ 92°℃热水,解决多人喝水无需等待

Continuous supply 92 °C hot water,Solve the problem of drinking water for many people with out waiting


超大冷胆 Super large cold tank

超大冷胆,冰水畅饮多人饮用,清凉消暑

Super large cold tank, drink ice water freely,Provide more cold water for more people


个性定制 Personalized customization

优秀技术团队,提供个性定制服务,为您排忧解难

Excellent technical team, providing customized service, Help you out


产品参数 Product Parameters

型号 MODELXC08-09B-WR
过滤方式 Water purification methodRO 反(渗透过滤)Reverse osmosisUF(超细微孔过滤 )Ultrafiltration
制水速度 Water purification abilityRO 7.8-31.2L/hUF50L/h
净水箱容量 Water tank capacity12L
冷水箱容量 Cold Water tank capacity3.5-10L
热水箱容量 Hot Water tank capacity5L
冷水温度 Cold Water temp4~10℃
热水温度 Hot Water temp85~95℃
制冷器 Cooler压缩机 Compressor
产品尺寸 Size of mode380x460x1247mm 或 380x460x1390mm
包装尺寸 Packing size530x460x1315mm
净重 Net weightRO 33kgUF 30kg
毛重 Gross weightRO 36kgUF 33kg
装柜数量 Container loading qty40'HQ/220台

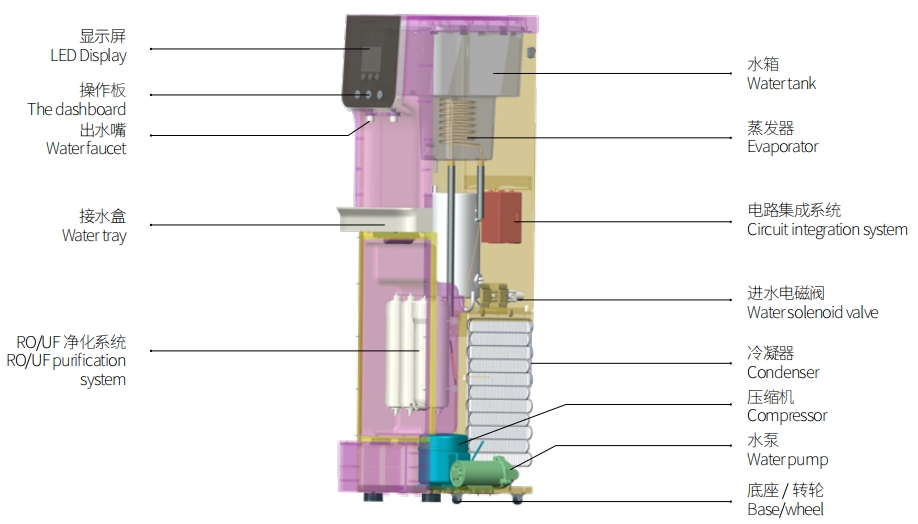

产品结构图 Product Structure
